Production process of magnesium oxide rotary kiln is relatively simple. It is always used to complete sintering and calcining procedure in magnesium processing. As core production equipment, Taeda magnesium oxide rotary kiln holds 180 to 1000t/d. It is featured in high calcining temperature, strong strength and large capacity. It can be used to improve quality of semi-finished magnesium oxide and ensure full utilization of its raw materials.
Application：mainly used for metallurgy, chemical industry, construction, refractory material, environment protection and new material field.
Taeda magnesium kiln adopts abrasion-resistant and temperature-resistant material imported from Japan, Sweden and USA to forge core components.
As professional rotary kiln manufacturer, if you have demand for dolomite and magnesium oxide rotary kiln, please feel free to contact.
Optimized calcining process makes thermal utlization rate improve by 30%. With high thermal transfer rate, Taeda rotary kiln helps you save cost.
After entering magnesium rotary kiln, materials can be rapidly decomposed in few seconds. Whole calcining process is done evenly. There is no raw burning and over-burning. Calcining temperature can be accurately controlled. Pulverized powder material or mud cake magnesite are fed from feeder to rotary dryer or preheating. Exhaust heat produced by magnesite decomposing will be used as heat source for above-mentioned dryer. After drying, dried magnesia ore is sent to calciner for calcination and the decomposed magnesium oxide (light-burned magnesium) is discharged from discharge port. Taida is a professional manufacturer of rotary kilns. If you need dolomite/magnesium oxide rotary kiln calcining equipment, please feel free to contact us!

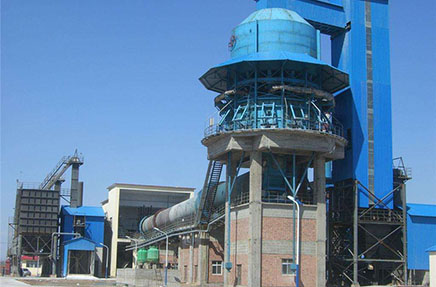

Jinan Lime Kiln Production Line
Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.
Raw material: Lime
Output capacity：350t/d
10TPH Russia Gypsum Production Site
Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.
Raw material：Phosphaste gypsum
Output capacity：1-10T/H
| Specification(m) | Rotary Kiln Parameter | Gearbox | Motor | ||
|---|---|---|---|---|---|
| Rpm(r/min) | Slope（%） | Capacity(t/h) | Model | Power（KW） | |
| ?1.6×32m | 0.58-2.85 | 4 | 2 | ZQ75-50 | 18.5 |
| ?1.6/1.9×36m | 0.53-1.59 | 4 | 2.5-3 | ZQ110-7 | 22 |
| ?1.9×39m | 0.53-1.59 | 4 | 3-3.4 | ZQ125-7 | 37 |
| ?2.2×45m | 0.214-1.64 | 3.5 | 4-5 | Main drive:ZS125-5 | 45 |
| Auxiliary drive:ZQ40-40 | 4 | ||||
| ?2.5×50m | 0.62-1.5 | 3.5 | 5-6 | Main drive:ZS165-5 | 55 |
| Auxiliary drive:ZS50-1 | 7.5 | ||||
| ?2.5×55m | 0.62-1.5 | 3.5 | 5-6 | Main drive:ZS165-5 | 55 |
| Auxiliary drive:ZS50-1 | 7.5 | ||||
| ?2.8×55m | 0.62-1.5 | 3.5 | 6-7 | Main drive:ZS165-5 | 75 |
| Auxiliary drive:ZS50-1 | 11 | ||||
| ?3.0×60m | 0.5-1.5 | 3.5 | 7-9 | Main drive:ZS165-3 | 125 |
| Auxiliary drive:ZS50-1 | 11 | ||||
| ?3.2×64m | 0.4-1.5 | 3.5 | 8-10 | Main drive:ZS130-16 | 190 |
| Auxiliary drive:Zl50-1 | 22 | ||||
| ?3.5×70m | 0.4-1.5 | 3.5 | 12-14 | Main drive:ZSY500-40 | 280 |
| Auxiliary drive:Zl50-14 | 22 | ||||
| ?4.0×80m | 0.4-1.5 | 3.5 | 16-20 | Main drive:ZLY630-35.5 | 355 |
| Auxiliary drive:ZSY280-35.5 | 30 | ||||
