Rotary Kiln

Calcium Aluminate Kiln

Major function of calcium aluminate rotary kiln is to process calcium aluminate. Calcium aluminate powder is a kind of high-aluminum clinker. In addition to being used in cement industry, it has been widely used inwater purifying agent production industry in recent years. Production process is：high-grade bauxite and calcium carbonate ore pass through crushing, drying, grinding, calcining and grinding. Taeda calcium aluminate rotary kiln is one of core equipment in this process.

Application：Applied for clinker and water purifier industry for calcining calcium aluminate, calcium ore, aluminum hydroxide, clinker, bauxite and other materials.

Order online Hotline:18939509384

Advantage：

Simple Structure and Reliable Running
Taeda calcium aluminate rotary kiln is featured in simple structure and stable running and production process is easy to control.

Wide Application Range
Taeda calcium aluminate rotary kiln can be widely applied in various industries like construction, chemical industry, environmental protection and sewage disposal.

Great Adaptabilit to Various Materials
Applied for clinker and water purifier industry for calcining calcium aluminate, calcium ore, aluminum hydroxide, clinker, bauxite and other materials.

Working principle：

Calcium aluminate rotary kiln mainly includes kiln body, supporting device, supporting device with blocking wheel, transmission device, movable kiln head, kiln tail sealing device, combustion device and other components.

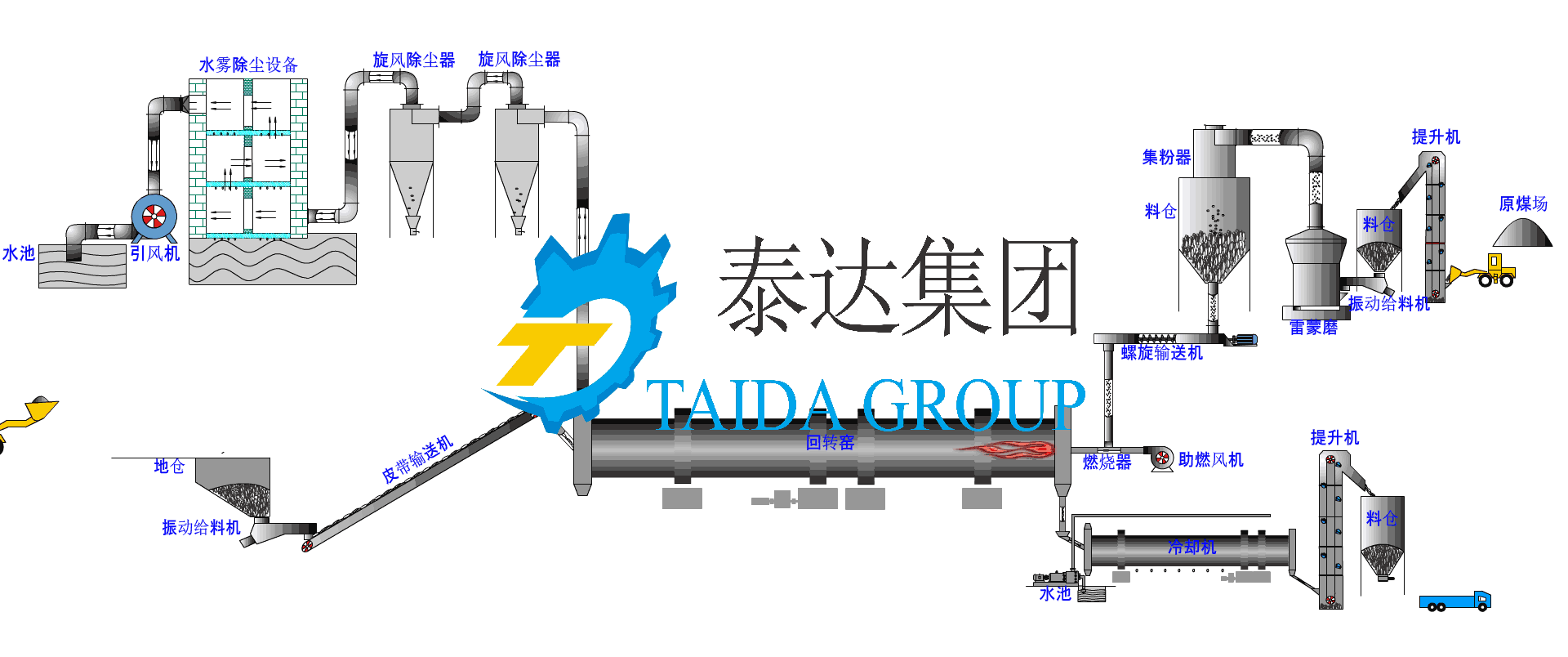

Raw materials will be fed into kiln end through belt scale, belt coveyor, stability bunker, storage, air-lock valve. There is only stable material storage equipped at kiln end in order to reduce investment. After entering calcium aluminate rotary kiln, iron ore will be heated first. Raw ore will move towards in the opposite direction of hot air in kiln. In heating area, raw ore will be heated to certain temperature and enter to reduction area. The central temperature of flame should be controlled at about 1000 degree. The temperature of hot air in reduction area should be controlled at about 700 degree and react with reduced coal gas. After that, hot air will enter cooling area and meet with coal gas which will be preheated. After being cooled, mineral ore will be discharged out of the calcium aluminate rotary kiln. After being water cooled, materials will be sent to storage for being chosen.

Delivery display：

Project case：

Jinan Lime Kiln Production Line

Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.

Raw material: Lime
Output capacity：350t/d
10TPH Russia Gypsum Production Site

Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.

Raw material：Phosphaste gypsum
Output capacity：1-10T/H

Working parameter：

Model	Capacity（t/d）	Support roller (Group)	Gearbox	Motor	Power(kW)
?2.2×38m	150	2	ZS125-5	YVF2-225M-4	45
?2.5×40m	200	2	ZS145-5	YVF2-250M-4	55
?2.8×43m	230	2	ZS165-6	YVF2-280S-4	75
?3.0×50m	250	2	ZS165-3	YVF2-280M-4	90
?3.2×50m	300	2	ZL130-16	YVF2-315L2-6	132
?3.6×55m	450	2	ZSY560-63	YVF2-355M1-6	160
?3.8×58m	550	2	ZSY560-63	YVF2-355M2-6	185
?4.0×60m	700	2	ZSY630-35.5	YVF2-355M4-6	200
